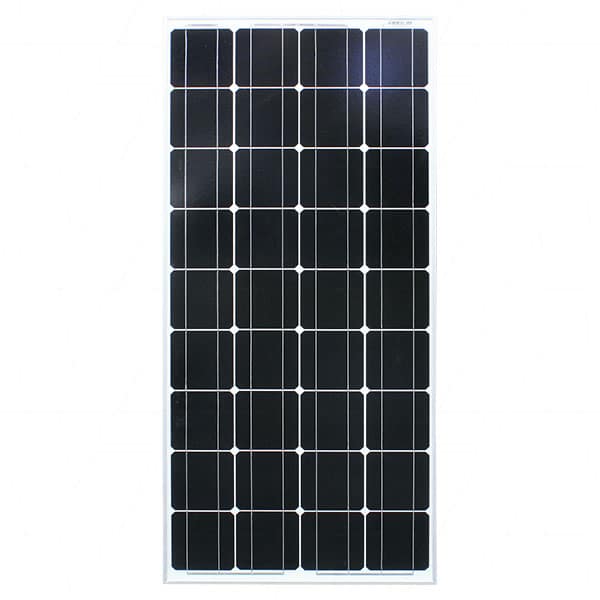

SY2-M100W/LH4 – Symmetry 12V 100W 36 cells 5.47A IP65 Monocrystalline Solar Module
$ 94.35
Description Model No SY2-M100W/LH4 Description Symmetry 12V 100W 36 cells 5.47A IP65 Junction Box Monocrystalline Solar Module with 2 x 0.9m leads with LH4 male & female connectors Voltage 12V Size 100W Width 540mm Height 35mm Length/Breadth/Depth 1200mm Weight 7700g Brand SY2-M100W/LH4 – Symmetry SY2 Series Solar Panels The New 5 busbar Symmetry range of small area modules are perfect for use in a wide variety of low power solar PV systems. Available in a range of sizes from 5 watts up to 160 watts, the Symmetry range uses mono-crystalline, weatherproof A grade solar cells in a robust aluminium frame. Features: 5 Busbar Cell – 5 busbar solar cells improve the efficiency of modules, offer a better aesthetic appearance. High Efficiency – High module conversion efficiency, through innovative manufacturing technology. Low-Light Performance – Advanced glass and solar cell surface texturing allow for excellent performance in low-light environments. Severe Weather Resilience – Certified to withstand – wind load (2400Pa) and snow load (5400Pa) Durability Against Extreme Environmental Conditions – High salt mist and ammonia resistance certified by TUV. 0- 5W Positive Tolerance – Detailed information in Electrical Specifications. Specifications Rated Power – Pmax (watts) 100W Max. Power Voltage VMP (V) 18.3V Max. Power Current IMP (A) 5.47A Open Circuit Voltage Voc (V) 22.42V Short Circuit Current Isc (A) 5.76A Max. System Voltage (V) 1000V Max Series Fuse Rating (A) 10A Voc Temp. Coefficients (V/°C) 0.290% Isc Temp. Coefficients (A/°C) 0.48% Temperature Range -40°C to 85°C Cell Technology Monocrystalline Number of cells 36 Junction Box Yes, IP65 Rated Connectors / Output Cable 2 x 0.9m long 2.5mm square cable with LH4 male & female connectors (rated to 30amps) Multiple Applications such as: Off Grid Systems Solar Fountains Caravans Boats & Marine Remote Lighting Power Supplies Telemetry Electric Fencing SY2-M100W/LH4 Data Sheets: SY2-M100W_LH40585 Feel free to contact us if you have any questions about the SY2-M100W/LH4 or message us on social media!
